54 Keys Type Embedded Numeric Keypad With Customized Button Font Color

Product Categories
shenzhen guangzhi technology co., ltd.
Contact Now

54 Keys Type Embedded Numeric Keypad With Customized Button Font Color

Brand Name : guangzhi

Model Number : GZ-B011013

Certification : FDA, SGS, ROHS, LFGB, REACH

Place of Origin : SHENZHEN CHINA

MOQ : 1PCS

Price : To be quoted

Payment Terms : T/T

Supply Ability : 10000pcs

Delivery Time : 1-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Warranty : 1year

Connection : USB or PS2 or R232

Material : Stainless steel 304

Keypad button material : Metal

Key option : Flate or Tactile Key

Contact Now

54 Key embedded metal stainless steel keyboard with customized button font color;

Product name:Metal Numeric Keypad

Model: GZ-B011013

front panel Size:218*108mm

PARAMETERS 　
Defend Grade IP65
Keys 54 keys
Vandal resistant IK09
Electrical lifetime > 5 years
Contact resistance 200 ohm (max)
Current Rating appr. 30mA
Power supply + 5V +/- 5%
Led color option
G.W. 1kg approx
Frame/keys materials Stainless steel
life span ≥2 million
Elasticity of key 2.5-3N
Key travel ≤100Ω
Atmospheric pressure 60-106Kpa
Operate Temperature -40℃~+85℃
Travel distance 0.45mm

Product Description: stainless steel keyboard, number keys, twenty-eight function keys and twenty-six letters, compact layout of keys, using 0.5mm long key stroke, installation method from inside to outside, the whole thickness is: 33mm, using all stainless steel panel and laser engraved key design, mold with precision and accuracy, beautiful surface treatment. Key value can be customized;

Electric parameter:

1. Operating current: Direct current+5V/-5%

2 working current:20mA

3 Expected life-time:>5yer

4. Button switch technology: Rubber key

Mechanical Specifications:

1.Design of the key: Square Key with character of laser engraving and corrosion.

2. Key Size: 13.8mm*13.8mm

3. Key`s travel :0.5mm

4. Key: It is with digital key and 6 function keys, and use port printing-brush SUS304 stainless steel material.

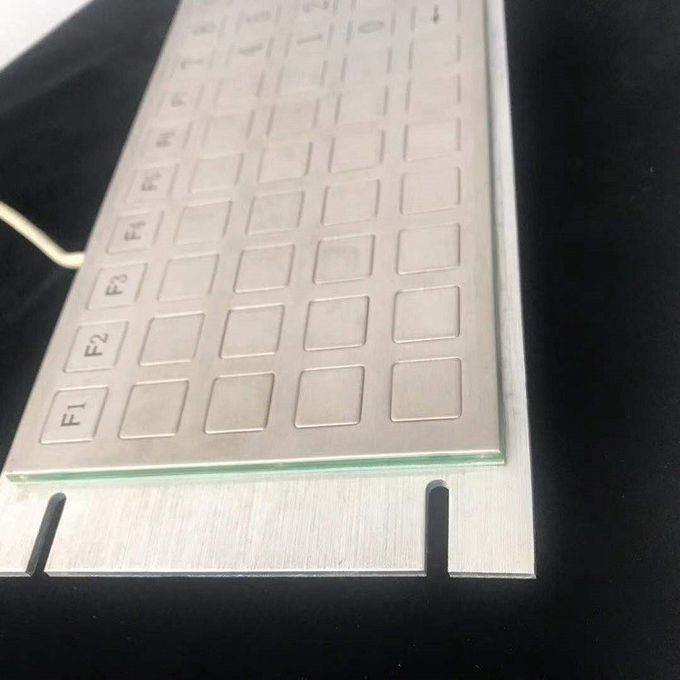

54 Keys Type Embedded Numeric Keypad With Customized Button Font Color

54 Keys Type Embedded Numeric Keypad With Customized Button Font Color

54 Keys Type Embedded Numeric Keypad With Customized Button Font Color
